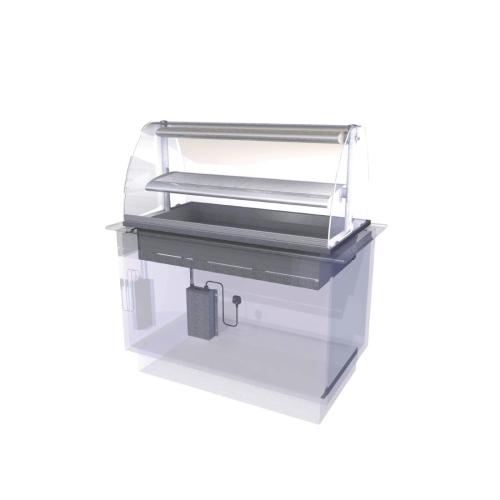

Designline Heated Deli Assisted Service 1175mm (L) (Direct)

Product Information

Display, illuminate, heat and protect pre-cooked food with CED's elliptically shaped Designline assisted service heated deli drop in display. This 3/1 Gn size hot display features a stainless steel heated 3/1 Gn well area, inclined for improved customer vision. An adjustable temperature heated midshelf at eye level offers further hot merchandising space. The display fits into a pre-formed cut out made in a countertop . The assisted service superstructure is made from bright polished steel and alluminum curved profiles, with curved & toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry & midshelf Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switches, mounted at eye level on operator

Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
24 hour operation as standard
Assisted service application
Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical lead and 3 pin UK plug top (13 Amp, 230v 2.9KW supply)
Curved glass profile is designed to complement other units within the Designline range
Curved display in bright polished steel and aluminium profile
